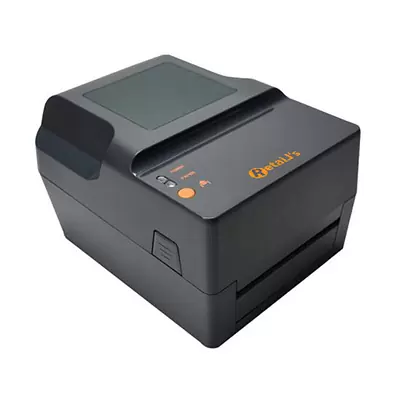

Barcode Label Printer
Model: LP-502
LP-502 Barcode Label Printer Short Description
* Fashion appearance
* With high speed, excellent stability and durability
* Paper detection by transmission type, accurately and rapidly
* Powerful function, support parallel, serial, USB multiple interfaces
* Imported thermal printer head, printing clearly and stable
* With function for automatic correction paper and carbon
* Simple and easy to replace paper and carbon belt
LP-502 Barcode Label Printer
| Printing | Resolution | 203dpi (High Resolution and High Speed) |
| Printing method | Thermal Transfer/Direct Thermal | |
| Printing speed | 4-5 Inch/s | |
| Max printing width | 104mm (4.09 ) | |
| Max printing Length | 2286mm (90 ) | |
| Interface | U、US、USPE(USB+ Serial+Parallel+Ethernet) | |
| Commands | TSC | |
| Ribbon Length | Max 300M | |
| Ribbon width | Min. 30mm; Max. 110mm | |
| Media | Max Media Roll OD | 127mm (5″ ) |
| Min Media Roll ID | 25mm | |
| Media Paper Type | Continuous, gap, fan hold, black mark, | |
| Media Rolling Up Method | Printing side outward Rolling | |
| Media width | Max 120mm (4.72″), Min: 20mm (0.78″) | |
| Media Roll Core Size | 25.4mm~38mm | |
| Media Gap | Min.2mm | |
| Media Thickness | 0.058mm~0.305mm | |
| Label Length | 10mm~2286mm | |
| Accessories | External Media Holder (Optional) | |
| Software | Editing Software | Nicelabel SE |
| Driver | Windows 2000、XP、Vista、Win7、Win8、Windows Server 2003&2008 | |
| Character font | Character Set | GB18030 (Simplified Chinese) |
| Print font | ASCII Font A: 12*24 | |
| ASCII Font B: 9*24 | ||
| Chinese: 24*24 | ||
| Environment | Temperature | Working: 5-45°C, Storage: -10~50°C |
| Specification | Humidity | Working : 25%~85% ; Storage: 10%~90% |
| Power supply | Input: AC 110V/240V, Output: DC24V/2.5A,60W | |
| Storage | 4MB | |
